How Butt Hinges Make All the Difference in Joinery Projects

Butt hinges are small but essential in joinery. They provide smooth movement, durability, and a clean, flush finish for doors and cabinets. Here's why they matter and how to choose the right one:

• Versatile Applications: Ideal for cabinet doors, internal doors, and heavy external doors.
• Material Options: Choose stainless steel for damp areas, brass for aesthetics, or galvanised steel for heavy-duty use.
• Types: Ball-bearing hinges reduce friction for heavy doors, while spring hinges help with automatic closure.
• Installation Tips: Use precise tools like chisels and marking knives for proper mortising and alignment.
• Maintenance: Regular lubrication and screw tightening keep hinges functional for years.

Quick Comparison of Hinge Types

Butt hinges are reliable, affordable, and adaptable to various needs. With the right choice, installation, and care, they ensure your doors and cabinets perform smoothly and last longer.

What Are Butt Hinges and Where to Use Them

Basic Parts and Design

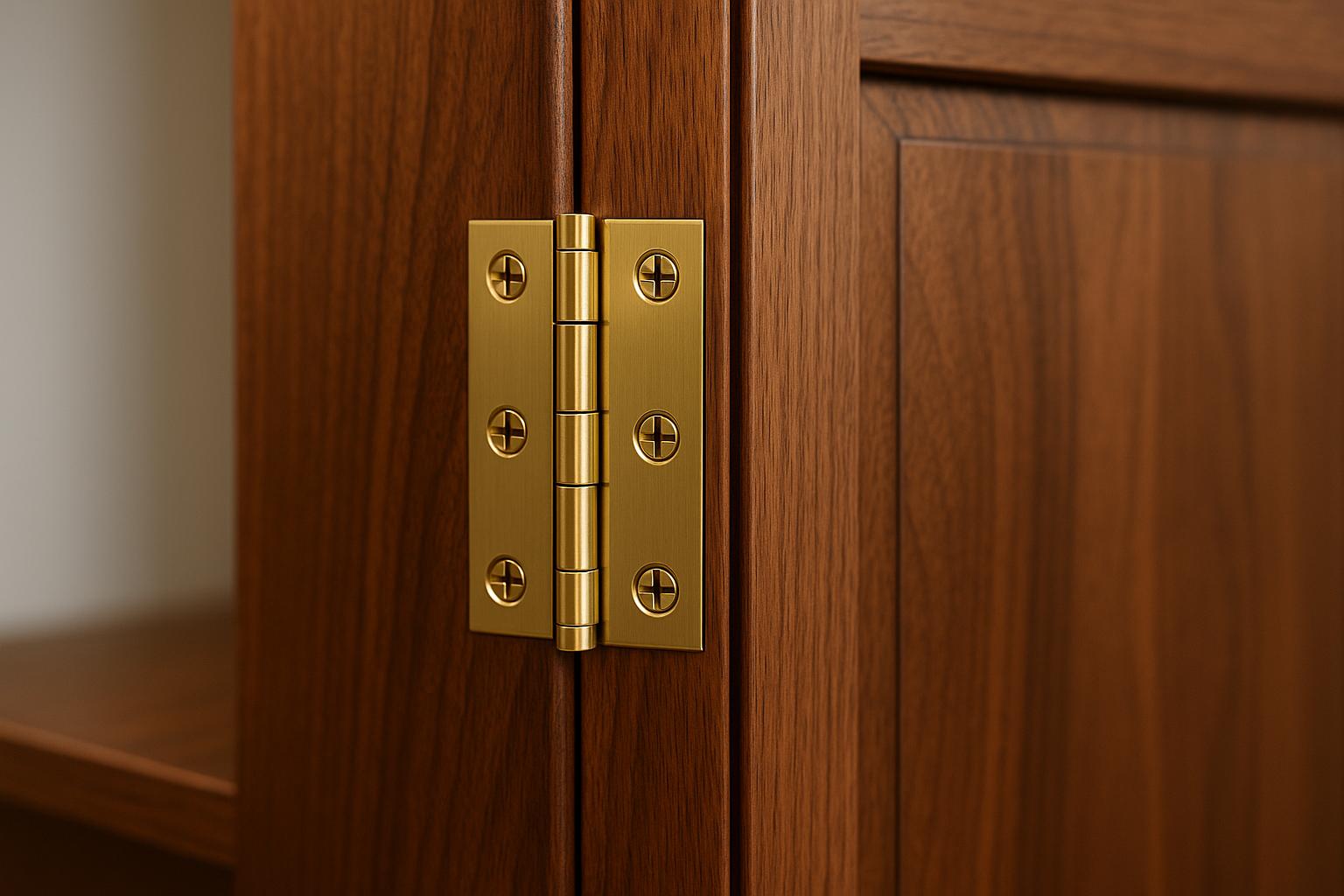

Butt hinges are made up of two rectangular plates, known as leaves, a central knuckle (or barrel), and a pin that allows the hinge to rotate smoothly. The design is all about precision. The width of the leaves, measured from the pin's centre, ensures even load distribution, while their thickness determines how strong and durable the hinge is. To avoid damaging the finish, a small clearance is left between the knuckle and the leaves. This attention to detail makes these hinges reliable and suitable for a wide range of uses.

"A butt hinge is a simple, durable, and reliable hinge option suitable for almost any type of door installation like cabinet doors, entry doors, and outside gates." - MT Copeland

Common Uses in Woodworking

Thanks to their sturdy design, butt hinges are a go-to choice for various joinery projects, whether at home, on a farm, or in industrial settings. Their versatility makes them ideal for several applications:

For specific needs, there are specialised types of butt hinges. Rising butt hinges, for instance, are perfect for doors that need to clear carpets as they open. Spring butt hinges, on the other hand, are great for automatically closing doors, making them handy for utility rooms or garden gates.

When choosing materials, think about the environment. Stainless steel or aluminium is ideal for damp areas, as they resist corrosion. For high-temperature conditions, galvanised steel performs best. If you're dealing with heavier doors, ball-bearing hinges can handle the weight better, offering smoother movement compared to plain bearing hinges.

For more joinery advice and hardware essentials, check out Neasden Hardware.

Furniture Making for Beginners - Installing Butt Hinges and Fitting a Cabinet Door

Choosing the Right Butt Hinge

Picking the right butt hinge is just as important as ensuring precise joinery. The correct hinge can significantly enhance the durability and functionality of your doors or cabinets.

Ball Bearing vs Plain Bearing

When it comes to butt hinges, you’ll often encounter two main types: ball bearing and plain bearing. Here’s a quick comparison to help you decide:

Ball bearing hinges incorporate small ball bearings that reduce friction, ensuring smoother operation and less wear over time. Plain bearing hinges, on the other hand, rely on metal surfaces sliding against each other, making them more suited for lighter use.

Special-Purpose Butt Hinges

For projects with specific needs, specialised butt hinges can offer tailored solutions. For example, fire-rated hinges are essential for doors that need to meet safety regulations. A great option is the BEST FBB Series, which includes anti-friction bearings and is approved for fire-rated doors.

Here are some popular material choices for special-purpose hinges:

• Stainless Steel 316: Perfect for exterior doors or damp environments.
• Galvanised Steel: Designed for heavy-duty use.
• Brass: Combines a timeless appearance with corrosion resistance.
• Die-cast Zinc: Built for demanding, heavy-duty applications.

Hinge Quantity Guide

The number of hinges required depends on the height of the door. Follow this simple guide:

For added functionality, spring-loaded butt hinges are a great choice for applications like cabinets or screen doors, as they provide automatic closure.

If you’re looking for more detailed advice on hinge selection or installation, check out our cabinet hardware section. To explore a full range of butt hinges, visit our Butt Hinges collection.

sbb-itb-8ff57eb

Step-by-Step Butt Hinge Installation

Once you've chosen the right hinge, proper installation is essential to ensure a professional and functional finish.

Required Tools and Materials

Make sure you have the following tools ready:

Installation Steps

1. Prepare the Door and Frame Begin by marking the hinge positions carefully. The mortise width should be slightly narrower than the hinge leaf's width up to the centre of the pin. To make assembly easier, apply a thin layer of beeswax to the brass screws - this helps prevent binding during installation.
2. Create the Mortises Using your marking knife, outline the hinge position with precision. Place a piece of scrap wood behind the work area to avoid damaging the surface. Start with a shallow mortise and adjust the depth incrementally until it fits perfectly.
3. Fit the Hinges Position the hinge leaves in the mortises. Drill pilot holes using steel screws first, and slightly offset the centre screw towards the back to ensure a snug fit.

By following these steps, you'll set the foundation for a smooth and properly aligned hinge operation.

"When it comes to searching out a hinge that offers durability, clean looks, and straightforward installation, you can't beat butt hinges." – Garrett Hack, Fine Woodworking contributing editor

Alignment Tips

Getting the alignment right is key to ensuring the hinge operates smoothly. Here are some useful techniques:

• Use a straight aluminium or steel bar with drilled holes to maintain perfect hinge alignment during installation.
• Ensure all hinge pins align along a single imaginary line through their pivot centres.
• Fold the hinge in different positions to double-check the mortise placement.
• Make any final adjustments using thin shims for precision.

For more advice on hardware selection and installation, visit our cabinet hardware section.

Need high-quality options for your project? Browse our Butt Hinges collection to find the perfect match.

Butt Hinge Care and Adjustment

Basic Maintenance Steps

Taking care of your hinges regularly can help them last longer and work smoothly. A quick check every 3–6 months can help you catch any problems early on.

Here are the main maintenance tasks to focus on:

For lubrication, stick to silicone-based products or light machine oil instead of WD-40, which is better suited as a cleaner. Avoid using water-based cleaners on bronze or iron hinges, as they can lead to corrosion.

If regular maintenance doesn’t solve the issue, you may need to troubleshoot specific problems. For tools and replacement parts, check out our door hardware section.

Common Problems and Solutions

Sometimes, hinges can develop issues despite routine care. Here’s how to tackle the most common ones:

Squeaky Hinges
Apply silicone spray or light machine oil directly to the hinge pin. Avoid relying on WD-40 for this, as it tends to attract dust over time.

Loose Hinges
If screws are loose, remove them, fill the hole with a wooden toothpick and some glue, let it dry, and then reinsert the screw for a tighter fit.

Misaligned Doors
For slight vertical adjustments, gently tap the hinge pin with a hammer. If the door needs horizontal alignment, place thin card or veneer shims behind the hinge leaf that needs adjusting.

Binding Issues
If the door sticks or binds, check for:

• Incorrect mortise depth
• Hinge leaf sticking out
• Door edge rubbing against the frame

In damp environments, like workshops or garages, high humidity can worsen binding. A dehumidifier can help, or you can opt for weather-resistant hinges designed for such conditions.

For more hinge options, visit our Butt Hinges collection.

Conclusion: Getting the Best Results with Butt Hinges

Choosing the right butt hinge is crucial for ensuring durable and reliable joinery. For heavy doors weighing over 160kg, heavy-duty galvanised or stainless steel hinges are the way to go. In areas prone to moisture, stainless steel or nylon hinges provide excellent resistance to rust and corrosion. Once installed, make sure to fine-tune the hinges for smooth and effortless operation.

The material you choose plays a big role in how well your hinges perform and how long they last. Brass hinges are ideal for lightweight interior doors, while stainless steel offers unmatched durability and handles temperature changes with ease. For a blend of style and function, ball-bearing butt hinges are a great choice, especially for decorative projects. Pairing the right material with proper maintenance ensures your hinges will stand the test of time.

Browse Our Butt Hinge Selection

Whether you're working on lightweight cabinet doors or heavy-duty exterior gates, we’ve got you covered. Check out our extensive range of hinges designed for different applications. Visit our door hardware section to find high-quality hinges and matching fittings for your next project.

With the right choice of hinge, proper installation, and regular care, you can expect them to perform reliably for 7 to 10 years.

FAQs

What should I consider when selecting the best material for butt hinges in various environments?

When selecting the material for butt hinges, it's crucial to match it to the environment where they'll be used. For indoor applications, brass and steel are popular options thanks to their strength and visual appeal. On the other hand, if you're working on an outdoor project or in areas with high humidity, stainless steel or galvanised steel is a smarter choice. These materials are excellent at resisting rust and corrosion.

It's also worth considering the weight and demands of your project. For heavier doors or gates, hinges made from sturdy materials like solid brass or stainless steel are better suited to handle the load and ensure durability. Choosing the right material for the job not only improves functionality but also extends the lifespan of the hinges.

What are the key differences between ball-bearing hinges and plain bearing hinges in terms of durability and upkeep?

Ball-bearing hinges are built to last longer and demand less maintenance than plain bearing hinges. Their secret? The built-in ball bearings that minimise friction during use. This not only ensures smoother door movement but also reduces wear and tear over time.

Because of this, ball-bearing hinges are perfect for doors in busy areas or those handling heavier weights. They’re less likely to stick or make that annoying squeaking noise. On the other hand, plain bearing hinges rely on direct metal-to-metal contact, which wears out faster and often needs regular lubrication to stay functional. When it comes to durability and ease of care, ball-bearing hinges are the obvious choice.

What is the best way to align and install butt hinges correctly?

To ensure the proper alignment and installation of butt hinges, begin by marking the hinge positions on both the door and the frame with care. Use a marking gauge or pencil to make sure the hinges are level and spaced evenly. Precision is key here, so take your time.

Next, use a chisel to carve out a mortise that allows the hinge to sit flush with the surface of the door and the frame. This step ensures the hinge is properly seated and the door operates smoothly.

Before fixing the hinges, pre-drill the screw holes. This helps prevent the wood from splitting when you insert the screws. Tighten the screws gradually, checking the alignment as you go. Once everything is secured, test the door to confirm it opens and closes without any issues.

To keep the hinges functioning well over time, apply a bit of lubrication occasionally. Regular maintenance like this will help ensure the hinges remain in good condition.
