Shelf Support, Plug in, for Wooden Shelves and Ø 5 mm Holes (100 pieces)

Shelf Support, Plug in, for Wooden Shelves and Ø 5 mm Holes (100 pieces)

£17.01 - £17.01
£17.01
£17.01 - £17.01
£17.01
All prices exclude VAT and will be calculated at checkout.

Next Day Delivery Available

Straight to your door from our London-based store.

For applications that require increased side stability, suitable for all types of furniture

Application

For wooden shelves

Colour/finish

nickel plated

Installation

For insert fitting

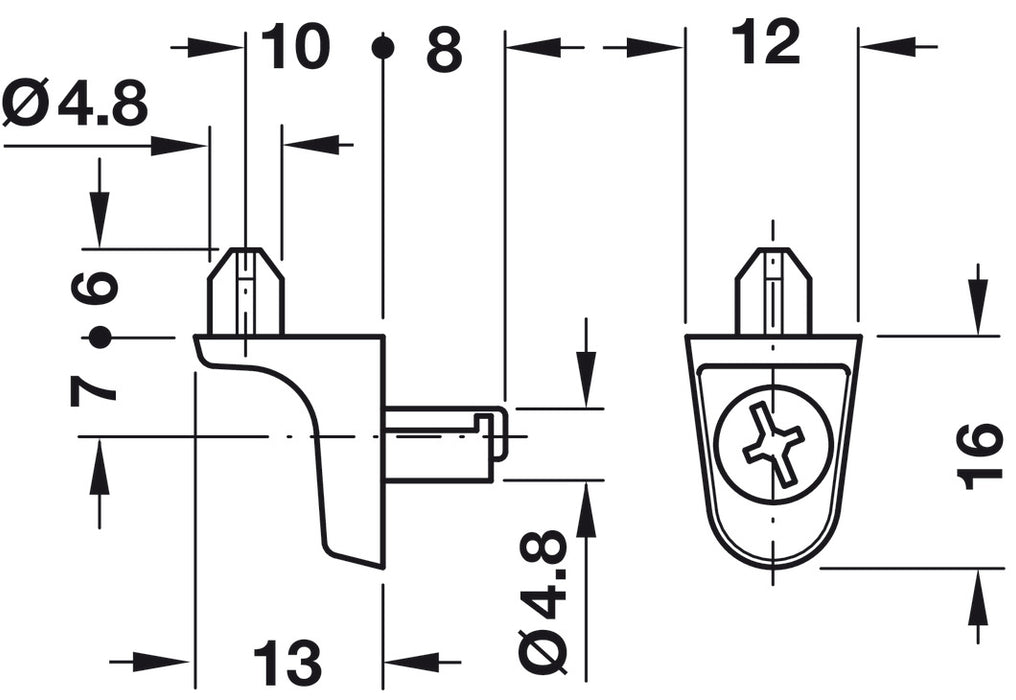

For drill hole Ø

5.00 mm

Distance fixing lug

10.00 mm

Support size

7.00 mm

Pin length

8.00 mm

Version

With fixing lug as shelf security feature

Material

Zinc alloy

Load bearing capacity per item

12.50 kg

Load bearing capacity with 4 shelf supports

50.00 kg

Note on load bearing capacity

tested with 1.7 kg plate for impact test in accordance with DIN EN 16337:2013-08

Installation note

Tightening by a 180° turn of the clamping screw; therefore avoiding surface damage to the drill hole
For inserting into drill hole ⌀ 5 mm
Avoid surface damage to the hole by tightening with screw
