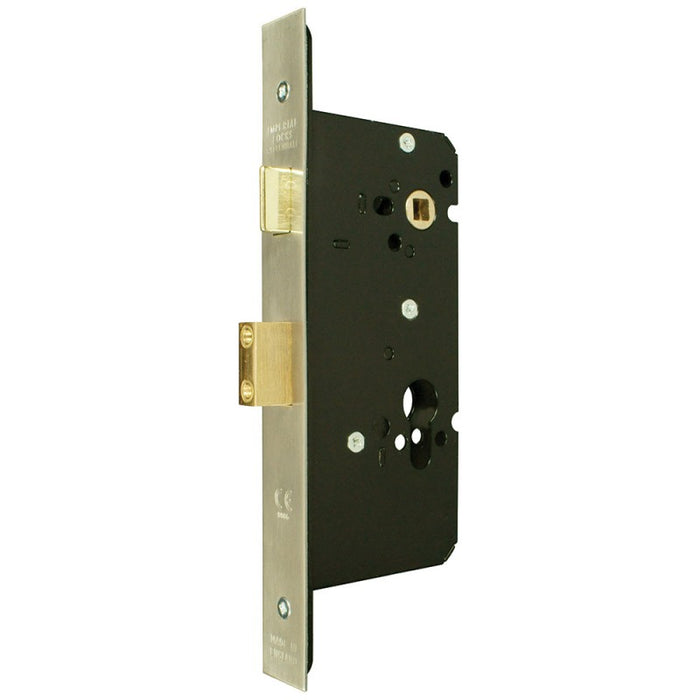

G72-7000 Euro-Profile Cylinder Mortice Sashlock SSS 101mm

G72-7000 Euro-Profile Cylinder Mortice Sashlock SSS 101mm

Save 20% Save 20%
£49.10
£49.10 - £49.10
£49.10
£39.28
£39.28 - £39.28
£39.28
All prices exclude VAT and will be calculated at checkout.

Next Day Delivery Available

Straight to your door from our London-based store.

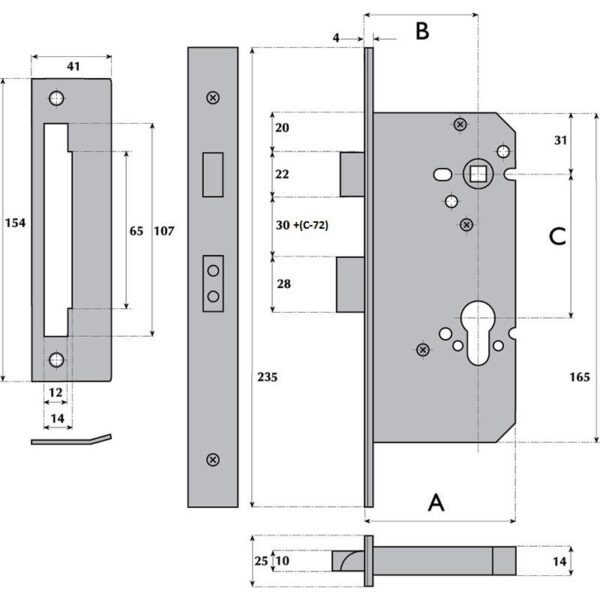

Fire Tested10 Year WarrantyCEPerformance* Do not use line drawing to mortice door – for guidance only

DDA compliant euro profile cylinder mortice sashlock for use on external wooden hinged doors providing a high level of security. CE Marked door lock Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209. Latchbolt operated by lever handle from either side. Deadbolt operated by key from either side using a double cylinder or by key outside and thumb turn inside using a single cylinder with turn. Supplied with striker plate and fixing screws.

A - Lock Case

101mm
B - Backset

82mm
C - Centres

72mm



Operation Latchbolt operated by lever handle from either side. Deadbolt operated by key from either side using a double cylinder or by key outside and thumb turn inside using a single cylinder with turn

Case Pierced to accept 20mm and 38mm centre bolt through fixing escutcheons and 38mm centre horizontally and diagonally opposed bolt through fixing furniture, 63mm size pierced diagonally only.

Forend Size 235mm X 25mm

Striker Plate Type P or Z

Latchbolt Brass, reversible. Projection 12mm

Deadbolt Brass, with two hardened steel rollers. Throw 14mm

Follower Brass, to suit 8mm square spindle. One-way action. Sprung to suit sprung lever handle furniture For unsprung lever handle furniture heavy duty springing should be specified

Cylinder Not supplied. All Euro Profile Mortice Locks are manufactured using a cylinder with a cam conforming to DIN 18254, it is the specifier's responsibility to ensure compatibility with the lock case.
