Automatic Opening Lid Stay 120N 268mm

Name: Automatic Opening Lid Stay 120N 268mm
Brand: Hafele
SKU: 373.82.906
Price: 7.42 GBP
Availability: InStock

£6.62 - £8.21

£7.42

£6.62 - £8.21

£7.42

All prices exclude VAT and will be calculated at checkout.

Quantity

Next Day Delivery Available

Straight to your door from our London-based store.

Description

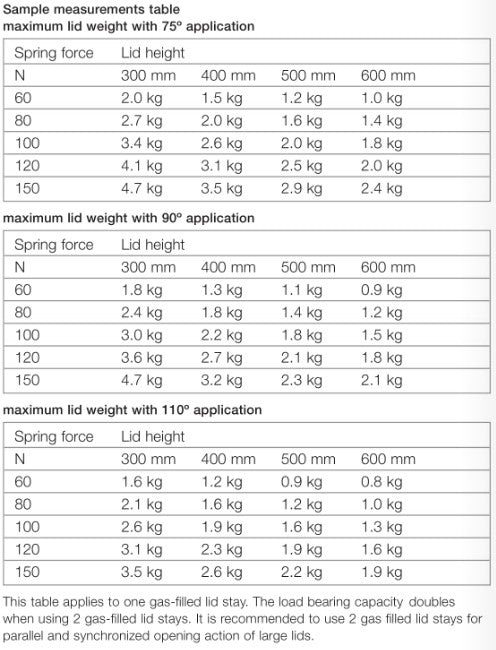

The load bearing capacity doubles when 2 gas-filled struts are used.

Area of application

Suitable for wooden and aluminium frame doors (choice of bracket supplied)

Version

Unhanded design
For pneumatic support

Material

Steel

Colour/finish

Nickel plated

Lid material

Wood, Aluminium frame

Opening angle

75 – 110 °

Mounting

Right and left hand use

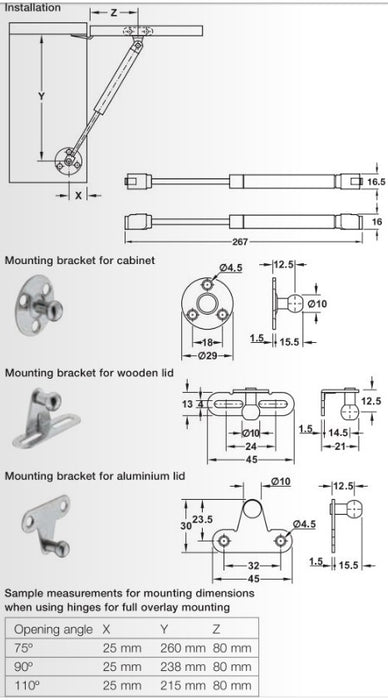

Installation

Clip-mounting on pre-mounted screw fixing brackets, no tools required

Installation note

It is recommended to use 2 gas-filled struts for parallel and synchronous opening of large flaps.

Order reference

Order concealed cup hinges separately

Supplied with

1x Mounting bracket for cabinet
1x Mounting bracket for wooden lids
1x Mounting bracket for lids with aluminium frame with frame width 20 mm
Installation instructions
Fixings
