Concealed Shelf Support, for Installation into Masonry Walls
£3.12 Inc. VAT
Next Day Delivery Available
Straight to your door from our London-based store.
£3.12 Inc. VAT
Next Day Delivery Available
Straight to your door from our London-based store.
With 65 mm screw thread
For concealed mounting of shelves
For installation into woodwork or masonry walls
Suitable for all domestic applications, especially shelving systems, radiator screens and telephone supports
The load bearing capacity of the shelf support is dependent on:
Shelf material
Shelf depth
Properties and condition of wall

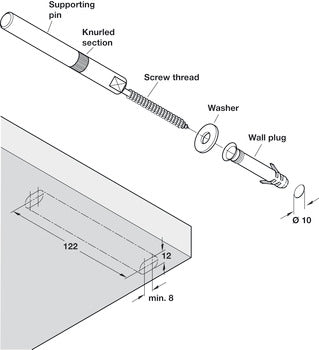

Drill Ø 10 mm hole and insert wall plug
Slip washer (supplied) onto screw thread
Screw shelf support into wall plug
For concealed mounting of shelves
For installation into woodwork or masonry walls
Suitable for all domestic applications, especially shelving systems, radiator screens and telephone supports
Install shelf on support as far as the knurled section
Use an SW 10 open-ended wrench for vertical adjustment
Finally push the shelf all the way to the wall
More than 2 pcs may be required per shelf depending on shelf weight and dimensions

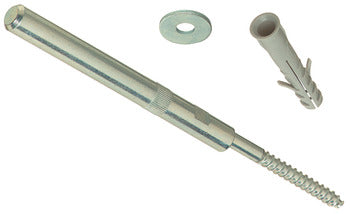

1x Supporting pin with screw, hardened steel
1x Washer, galvanized steel
1x Wall plug, SR 10 60 mm, grey nylon
