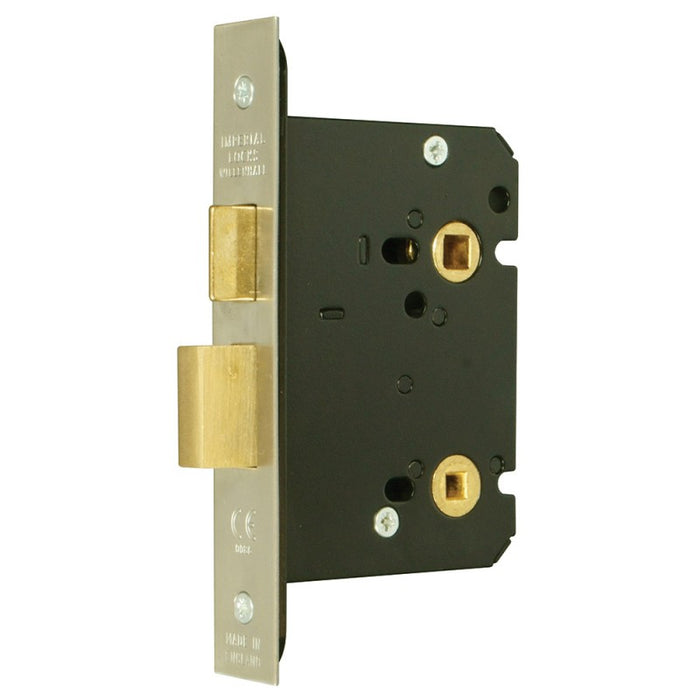

G8020 Bathroom Mortice Lock SSS 101mm

G8020 Bathroom Mortice Lock SSS 101mm

Save 20% Save 20%
£41.83
£41.83 - £41.83
£41.83
£33.46
£33.46 - £33.46
£33.46
All prices exclude VAT and will be calculated at checkout.

Next Day Delivery Available

Straight to your door from our London-based store.

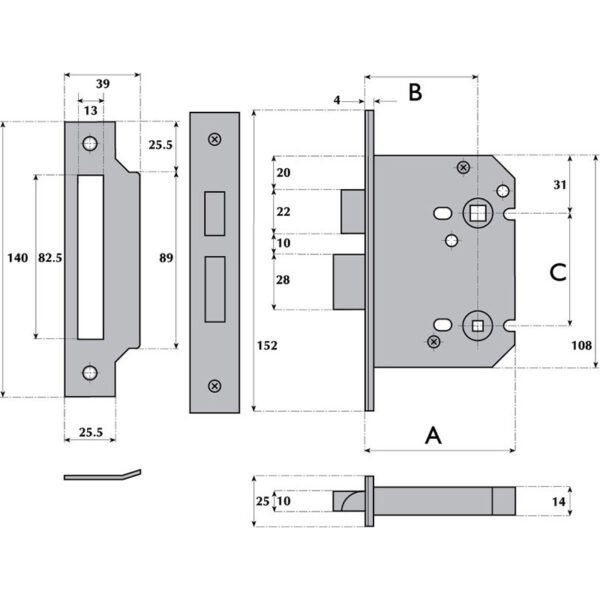

Fire Tested10 Year WarrantyCEPerformance* Do not use line drawing to mortice door – for guidance only

Bathroom mortice lock for use on wooden hinged doors. CE Marked door lock Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209. Latchbolt operated by lever handle from either side Deadbolt operated by turn from either side. Supplied with striker plate and fixing screws.

A - Lock Case

101mm
B - Backset

82mm



Operation

Latchbolt operated by lever handle from either side Deadbolt operated by turn from either side

Case

76mm and 101mm sizes pierced to accept 38mm centre horizontally and diagonally opposed bolt through fixing furniture 63mm size pierced diagonally only

Striker Plate

Type A

Latchbolt

Brass. Projection 12mm

Deadbolt

Brass. Throw 14mm

Latchbolt Follower

Brass, to suit 8mm square spindle. One-way action. Sprung to suit sprung lever handle furniture. For unsprung lever handle furniture heavy duty springing should be specified

Deadbolt Follower Brass, to suit 5mm square spindle
