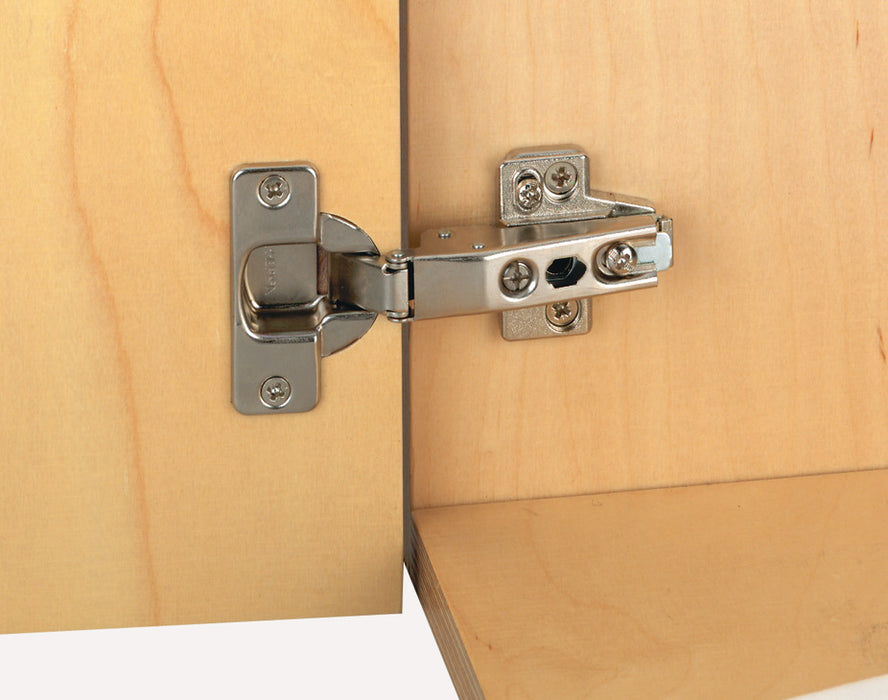

Hafele 322.11.530 Grass Nexis Concealed Cup Hinge 95° Full Overlay

Name: Hafele 322.11.530 Grass Nexis Concealed Cup Hinge 95° Full Overlay
Brand: Hafele
SKU: 322.11.530
Price: 2.76 GBP
Availability: InStock

Save 40%

£4.61

£4.61 - £4.61

£4.61

£2.76

£2.76 - £2.76

£2.76

All prices exclude VAT and will be calculated at checkout.

Next Day Delivery Available

Straight to your door from our London-based store.

Description

Soft-close compatible

Area of application

For standard applications

Version

Click on

Concealed hinge version

Full overlay

Crank type

Straight

Door processing for assembly

With cup drilling

Material

Steel

Colour/finish

nickel plated

Opening angle

95°

Cup drilling depth

11.80 mm

Cup drilling Ø

35 mm

Cup fixing

For screw fixing

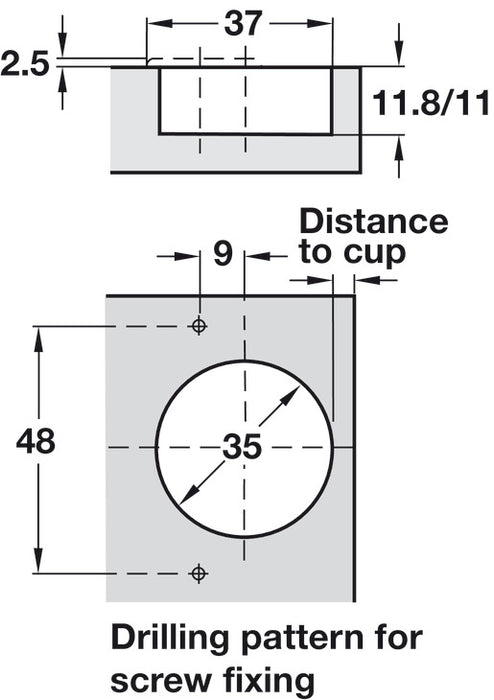

Drilling pattern

48/9

Order reference

No fixings supplied
