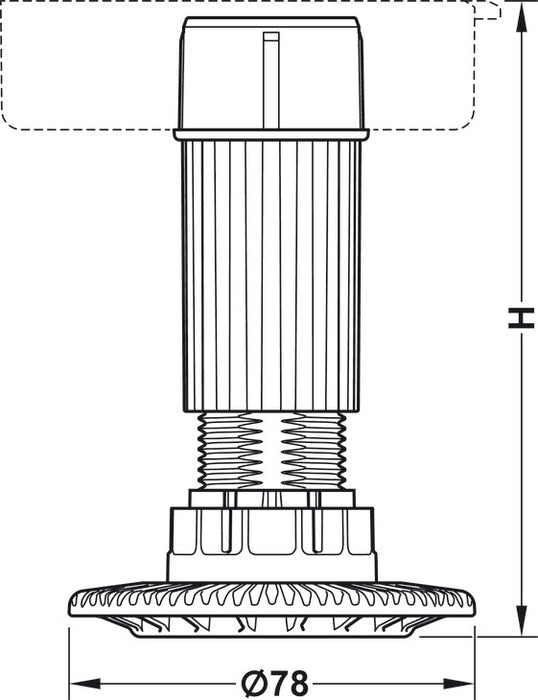

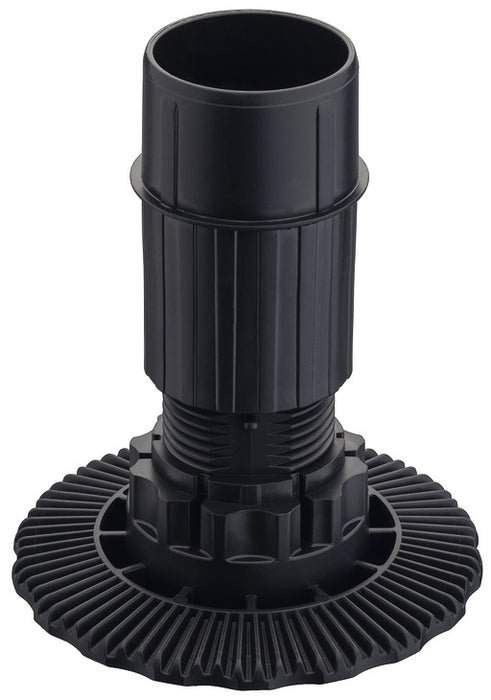

Häfele AXILO™ 78 Plinth System Foot And Shaft Section

Häfele AXILO™ 78 Plinth System Foot And Shaft Section

£1.01 - £1.02
£1.01
£1.01 - £1.02
£1.01
All prices exclude VAT and will be calculated at checkout.

Next Day Delivery Available

Straight to your door from our London-based store.

The Häfele Axilo 78™ system is easy, convenient and efficient.Compromising 6 unique components - the top section, the shaft and foot section, the plinth panel clip, the plinth panel holder, the adjusting tool and finally the extension tool.The system is a specially designed plinth fitting and adjustment tool to enable perfect alignment of cabinetry. Not only saving you time but most importantly allowing you to work without awkward postures; no more bending, crawling or stretching required to get to the back of the cabinets.Using the 6 components, the arm which serves as an extension tool can be used from any angle to slot into the bottom of the specially designed foot section so it can be adjusted higher or lower as required.Please watch the video linked to the left for a demonstration.

Robust plinth system with large foot
Easy plinth installation
Height adjustment with different screw-in parts and tubes
Easy adjustment of glides

Version

Joiner/cabinet maker pack, fine thread

Area of application

For ergonomic and time-saving height adjustment of the AXILO® 78 plinth adjusting fitting system in the entire plinth area such as with corner cabinets

Recycled content

100%

Colour/finish

Black

Adjustment facility

Height adjustment facility: Max. 80 kg cabinet weight

Load bearing capacity

250 kg

Note on load bearing capacity

Load bearing capacity applies with static loads. During adjustment, the following applies: 80kg/foot under rotating load. Extendable to 110 kg/foot with ABS insert 637.76.423.

Installation

Plug fits into mounting plate
