Arrone AR8200-SE Overhead Door Closer Complete Unit

ARRONE overhead door closing device:

Silver finish

• Power size: 2 to 4 adjustable by template
• Function: Closing, latching
• Cover: Slide cover
• Maximum door width: 1,100 mm (Fig 1 and Fig 61), 950 mm (Fig 6)
• Maximum door weight: 80 kg (Fig 1 and Fig 61), 60 kg (Fig 6 )

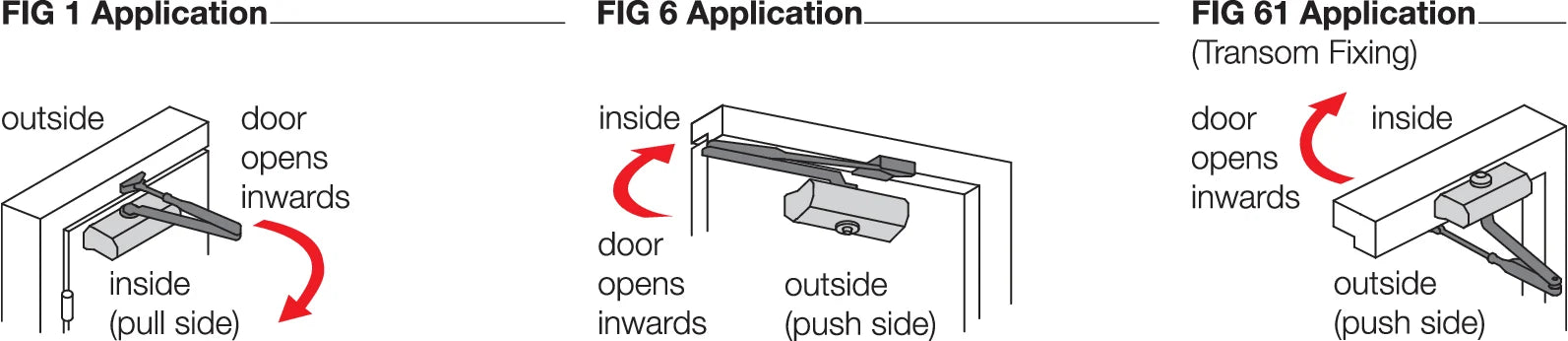

• Arm application: Fig 1, Fig 6 and Fig 61 fixing positions
• Successfully type tested for conformity to all the requirements of BS EN 1154:1997
  - Door mount pull (Fig 1), transom mount push (Fig 61): 3 | 8 | 4/2 | 1* | 1 | 3
  - Door mount push (Fig 6): 3 | 8 | 3 | 1* | 1 | 3
• Included in a successful fire test to BS EN 1634-1. Assessed for use on 30, 60 and 120 minute timber fire doors and 240 minute on steel fire doors.
• CE Marked: AD0118, UKCA Marked: UK-AD7682
• Certifire approved: CF295, CE DOP: HUK0020, UKCA DOP: HUK0020-UK
