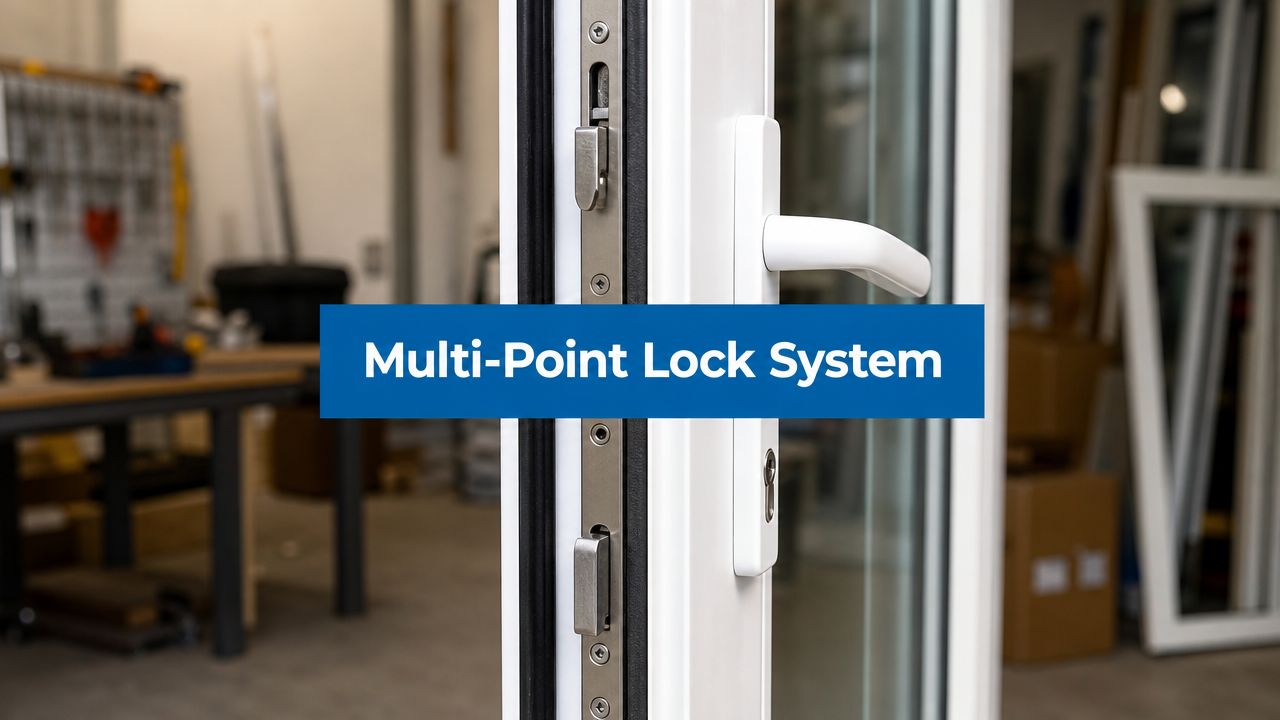

What Is a Multi Point Locking System

If you're standing at a front door with the handle half-lifted, the key stiff in the cylinder, and a customer asking whether the whole lock needs replacing, you're already in the world of multipoint locking. Most modern entrance doors in the UK don't rely on one latch in the middle. They rely on a mechanism that secures the door along its height, pulls it into the frame, and helps the whole set work as one assembly.

That's why the question isn't just what is a multi point locking system. The useful question is what it does on a real door, how it fails, and when it's worth repairing, replacing, or leaving alone.

An Introduction to Multipoint Locking Systems

A multi-point locking system secures a door at several points along the frame rather than at one latch location. In practice, the most common residential setups are 3-point and 5-point systems, while some high-security versions use up to 20 locking points according to Shield Security Doors' guide to multi-point locking systems.

That matters on UK entrance doors because a modern uPVC, composite, timber, or aluminium slab is often taller, heavier, and more dependent on correct alignment than an old single-lock timber door. If all the holding force sits at one latch position, the rest of the door can move, flex, or pull away from the seals. A multipoint lock spreads that load across the frame instead.

Why single-point locking often falls short

A single latch or deadlocking point can still be suitable in the right application, but it has limits on larger external doors. The top and bottom of the door are left to hinges, weather seals, and the general stiffness of the slab. Over time, that can mean movement, draughts, and a door that never quite shuts with confidence.

Multipoint locking deals with a different set of priorities:

• Better force distribution: The load is spread along the edge of the door rather than concentrated in one place.
• Improved closure: The mechanism helps draw the door tighter into the frame.
• More stable day-to-day operation: The door is less likely to feel loose at the head or threshold.
• Stronger overall security logic: An intruder isn't attacking one fixing point alone.

On a decent entrance door, the lock isn't just there to keep people out. It also keeps the slab in line with the frame.

If you work across different openings, it helps to compare door security as a whole system rather than looking at one lock in isolation. For wider context on another vulnerable entry point, this guide on garage door security explained is worth a look because it shows the same principle. Security improves when the whole opening is considered, not just one piece of hardware.

What makes multipoint locking standard on modern doors

The core idea is simple. One action at the handle or key engages multiple locking elements along the edge of the door. That gives modern doors a more secure and more controlled closure, which is why multipoint systems became normal on many current entrance doors rather than being treated as a premium extra.

How a Multipoint Lock Works

At its heart, a multipoint lock is one long coordinated mechanism. The easiest way to think about it is as a central gearbox pulling the rest of the hardware into action, much like an engine moving a connected set of parts rather than each one operating on its own.

The main parts of the mechanism

The parts you'll usually deal with are:

• Central gearbox: This is the working core around the handle spindle and cylinder position.
• Faceplate: The long strip visible on the door edge.
• Locking points: These may be hooks, shoot bolts, rollers, deadbolts, or a mix depending on the design.
• Keeps: The receiving plates or strike points fitted in the frame.

When the handle is lifted, or when the lock is triggered automatically on some systems, the gearbox transfers movement through the strip so the locking points engage together. When the key is turned, the system is usually deadlocked.

Three-point locking is designed to secure the top, middle, and bottom of a door at the same time, rather than relying on a single lock point. The mechanism works by turning one key or handle so that rods or bolts move simultaneously into the frame, creating a tighter fit and more stable closure. That distribution of force across 3 or more points improves stability and helps resist warping, as outlined in Wikipedia's technical summary of three-point locking.

What you feel in use

On a properly aligned door, the handle should lift cleanly without a grinding feel. You're not just throwing bolts. You're drawing the slab into the frame so the seals compress more evenly.

That's why a multipoint lock often affects all of these at once:

Practical rule: If the handle only works when you pull or push the door hard, the problem often isn't the gearbox alone. Check alignment, keeps, hinges, and compression before condemning the mechanism.

If the cylinder side of the system is unclear, it helps to understand how the operating cylinder works alongside the strip mechanism. This explanation of Euro cylinder locks gives the right background for that part of the assembly.

A quick visual helps if you're diagnosing one on site:

Common Applications and System Types

You'll see multipoint locks most often on modern entrance doors because that's where they make the most practical sense. In UK use, a multipoint locking system is typically a three-point or more mechanism that secures a door at the top, middle, and bottom simultaneously. It's especially common on uPVC, composite, timber, and aluminium entrance doors because the load is spread across the frame, which increases resistance to forced entry and reduces door movement over time, as described by G-U's overview of door lock systems.

Where you'll commonly find them

In practice, these systems turn up on:

• Front entrance doors: Especially uPVC and composite sets supplied as complete systems.
• Back doors and side doors: Where weather sealing matters as much as security.
• French doors: Active leaves often use multipoint hardware to control movement along the full height.
• Some patio and glazed door sets: Depending on configuration and manufacturer.

Timber doors can use them very well, but timber introduces an extra question. Is the door stable enough, and is the machining accurate enough, to justify the mechanism? On a poor slab or a moving frame, the lock won't save the installation.

Mechanical and automatic systems

The biggest choice in everyday use is usually between mechanical and automatic operation.

A mechanical, lever-operated lock normally needs the user to lift the handle to engage the locking points, then turn the key to deadlock. An automatic or slam-shut system engages parts of the mechanism when the door closes, with key operation completing or securing the lock depending on design.

Automatic systems are convenient, but they don't excuse poor fitting. If the door has to be forced shut, an automatic lock will only highlight the fault faster.

For anyone working on larger premises or mixed-access buildings, it's also useful to understand where door hardware stops and broader building security starts. This overview on understanding access control systems is a good companion read because it separates mechanical locking from managed entry control.

How to Choose the Right Multipoint Lock

Choosing a replacement multipoint lock is mostly a measuring job. If you guess, you'll waste time, and if you assume all strips are interchangeable, you'll order the wrong case, the wrong centres, or a lock with locking points that don't meet the keeps.

The measurements that matter

For like-for-like replacement, check these before anything else:

1. Backset
   Measure from the front edge of the faceplate to the centre of the handle spindle or cylinder position, depending on the lock layout.
2. PZ centres
   This is the distance between the centre of the spindle and the centre of the cylinder.
3. Faceplate width and overall strip length
   Even a small mismatch can create fitting trouble on the door edge.
4. Locking point type and position
   Hooks, rollers, shoot bolts, mushrooms, deadbolts. They must line up with the frame keeps.
5. Handing and operation
   Some systems are handed, others are reversible. Check how the door opens and how the latch or hooks are set.

Don't judge security by locking points alone

One of the biggest misconceptions is that more hooks or bolts automatically mean a safer door. The security benefit comes from the whole assembly, including the door, frame, keeps, cylinder, and installation accuracy, not merely from the number of locking points. A multipoint lock can still fail if the cylinder is vulnerable to snapping, so security claims need to be considered alongside cylinder compatibility and certification, as noted in Endura's guidance on multipoint locking systems.

That's why I'd always check these parts together:

• Cylinder quality: A weak Euro cylinder can undermine the whole setup.
• Keep strength and alignment: Good lock points are no use if they don't land cleanly.
• Door condition: A warped slab or tired hinges will keep causing trouble.
• Installation accuracy: The strip has to run true, and the gearbox must sit square.

If the key side is vulnerable, the rest of the strip won't rescue the door.

If you need a grounding in lock bodies beyond multipoint mechanisms, this guide to mortise locks helps clarify how different lock formats compare in practical use.

For landlords and facilities teams dealing with a wider estate, broader physical security planning matters too. This resource for facility managers gives useful context on how door hardware fits into an overall access strategy.

A sensible selection process

Use the old strip as the template whenever possible. Photograph the faceplate, gearbox markings, locking points, and keeps before removing anything. If the door has been hard to operate for a while, don't just match the strip. Check why it wore out. Replacing a failed mechanism into a misaligned frame usually means the next failure is already on its way.

Maintenance Tips and Signs of Failure

Most failed multipoint locks give warnings before they stop working. The trouble is that people ignore them until the key won't turn, the handle drops, or the door won't open from either side.

Common warning signs

Watch for these faults early:

• Stiff handle lift: Often linked to misalignment, dirty keeps, or a tired gearbox.
• Key difficult to turn: May be cylinder trouble, pressure on the lock, or both.
• Scraping or grinding noise: Usually means poor engagement or wear in the strip.
• Door needs pulling or pushing to lock: The slab and frame aren't meeting correctly.
• Loose handles or faceplate fixings: Movement around the centre case often accelerates wear.

A maintenance routine that actually helps

A simple routine prevents plenty of call-outs:

• Clean the keeps: Dirt, paint build-up, and debris in the frame can stop smooth engagement.
• Lubricate the moving parts properly: Use a suitable lock lubricant on the mechanism points and avoid soaking the strip with the wrong product.
• Tighten fixings: Check handle screws, cylinder retaining screw, and faceplate screws.
• Check alignment: Look for dropped hinges, seal pressure, or frame movement.
• Test with the door open: This separates lock faults from closing pressure against the frame.

A multipoint lock should feel smooth with the door open. If it only struggles when shut, investigate alignment before replacing parts.

The worst habit is forcing the handle. That may get the door locked tonight, but it often damages the gearbox or bends the operating parts. Once a customer starts using body weight to lift the handle, failure isn't far away.

A Practical Buying Guide for Trade and DIY

The best buying decision usually comes down to one question. Are you replacing an existing multipoint lock like for like, or are you trying to convert a door that was never designed for one?

Those are completely different jobs.

When repair makes sense

Repair is often the right move if the original strip matches the door, the keeps are sound, and the fault is localised. In many cases, a worn cylinder, damaged handle set, or failed gearbox can be replaced without changing every part of the mechanism.

A repair-first approach is usually sensible when:

• The strip is still correct for the door
• Locking points are intact and engaging properly
• The frame isn't twisted or badly worn
• You can identify the fault clearly

If the door has become difficult because of hinge drop or keep misalignment, sort that first. Hardware gets blamed for a lot of joinery faults.

When full replacement is the better option

Retrofit complexity is where many generic guides fall short. Multi-point locks require precise preparation in the door and frame, and that matters because tradespeople and landlords often need to know whether a door can be upgraded without replacing the whole slab. Practical guidance from Reeb on multi-point locksets also highlights that a full replacement can be more economical than a conversion when alignment work and door prep start adding up.

That matches what happens on site. If the old mechanism is obsolete, the keeps don't suit the new strip, the door edge needs major routing, or the slab itself is tired, a fresh lock or even a fresh door set can be the cleaner answer.

Good buying habits for trade and serious DIY

Before ordering, I'd keep the process disciplined:

• Start with identification: Brand marks, gearbox stamps, faceplate width, centres, and lock point layout.
• Match the material: uPVC, timber, composite, and aluminium doors don't always take the same approach well.
• Buy the compatible parts together: Strip, cylinder, handles, and keeps need to work as one set.
• Avoid “nearly right” replacements: A close match often creates more trouble than the old lock.
• Know your limits: Like-for-like replacement can suit a capable DIYer. Fresh retrofitting usually needs proper tools and experience.

If you're tackling a replacement yourself, accurate prep matters as much as the parts. This guide on how to install door locks is a useful reference before you strip the door down.

A multipoint lock is worth buying properly because it affects security, weather sealing, alignment, and the feel of the door every single day. Cheap mismatched parts tend to show their faults quickly. Good hardware, fitted square and matched to the door, normally pays back in fewer call-outs and less grief.
